Understanding the OSI Model: A Foundation for Network Communication

One foundational concept stands out when studying and trying to better understand cloud computing and network communication: the Open Systems Interconnection (OSI) Model. This model is part of networking history and still serves as a blueprint that influences how we understand and structure digital communication.

Comprehending the OSI Model is crucial as you embark on your journey to mastering cloud computing, particularly in environments like AWS. It provides a systematic approach to troubleshooting network issues and designing efficient cloud architectures. By demystifying each layer of network interaction, the OSI Model offers clear insights into the intricate world of data exchange.

So, let’s delve into this model to unveil how it continues to shape the backbone of modern networking and cloud computing.

The Concept Behind the OSI Model

Before we delve into its competent parts, it’s worth giving you more background to this pivotal model. It was developed in the early 1980s, marking a significant milestone in the evolution of network communication.

Spearheaded by the International Organization for Standardization (ISO), it was introduced in 1983 and adopted as an international standard in 1984. This move was a response to the growing need for a universal communication framework in the rapidly expanding landscape of computer networking. The OSI Model was the first standard network communications model widely adopted by significant computer and telecommunication companies worldwide.

Its primary purpose was to standardize network protocols, enabling diverse computer systems to communicate seamlessly. The OSI Model revolutionized the way network protocols were developed and implemented by delineating a clear structure of seven layers, each with a specific function in the data communication process.

This standardization was vital in fostering interoperability among different systems, laying the groundwork for the advanced network communications we rely on in today’s cloud computing world. It also facilitated smoother communication across different systems and provided a common language for network professionals to diagnose and resolve connectivity issues.

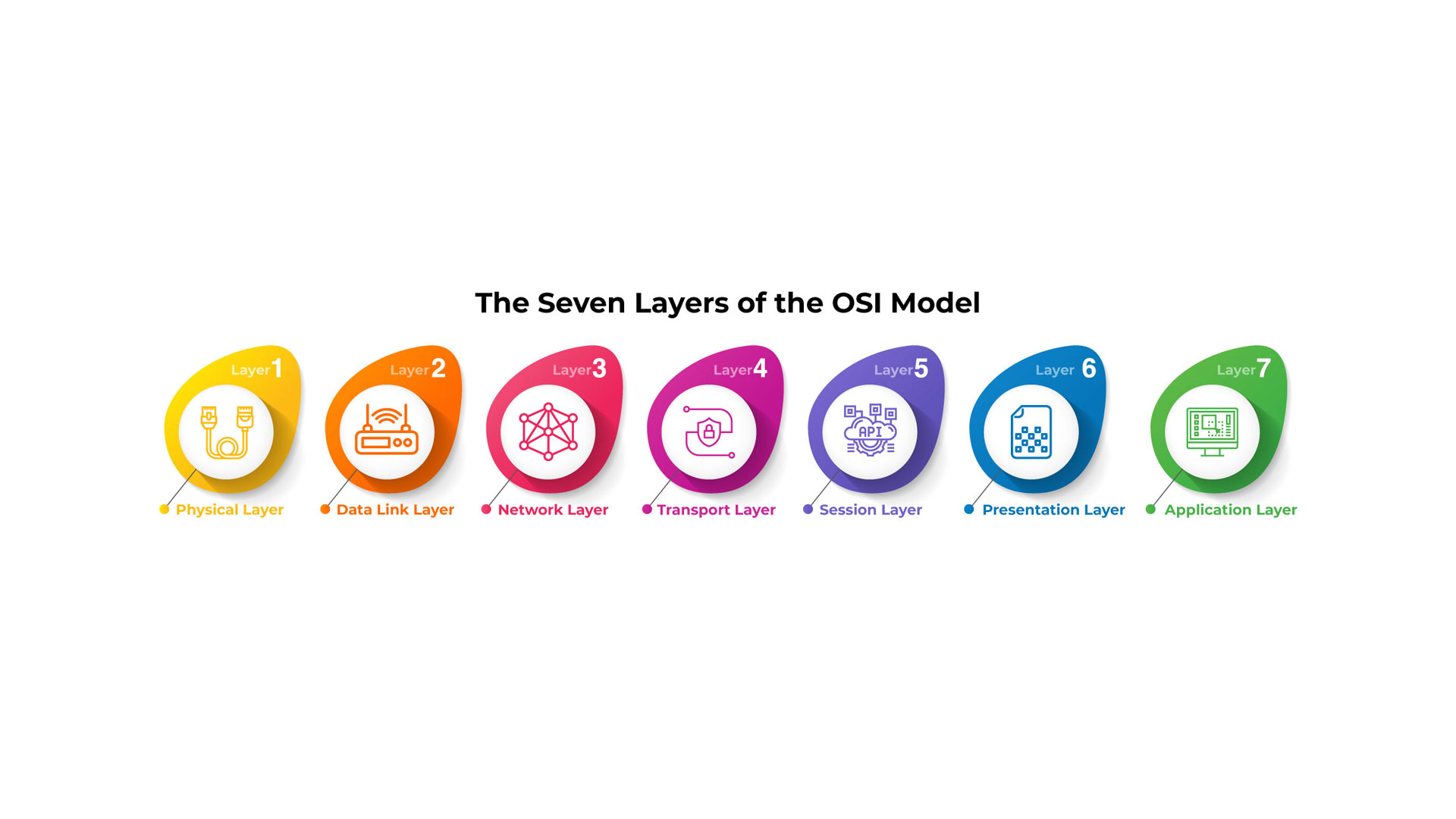

Exploring the Seven Layers of the OSI Model

The OSI Model simplifies the complexity of network communication by dividing it into seven distinct layers. Each layer has a specific role, ensuring the smooth data flow from one point to another. Let's dive into each layer and understand their functions:

Layer 1: Physical Layer

The Physical Layer is the foundation of the OSI model. It includes the physical equipment necessary for data transfer, such as cables, switches, and routers. This layer is responsible for converting digital data into electrical, optical, or radio signals and vice versa.

Layer 2: Data Link Layer

The Data Link Layer establishes, maintains, and terminates connections between two physically adjacent nodes on a network. It breaks up data into frames and handles the transmission from source to destination. It's also where Media Access Control (MAC) addresses are used to ensure that data reaches the correct device.

Layer 3: Network Layer

The Network Layer is crucial for data transfer across different networks. It's responsible for breaking down data into packets and selecting the best route for them to reach their destination. Protocols like IP (Internet Protocol) are used here for routing and addressing.

Layer 4: Transport Layer

The Transport Layer ensures end-to-end communication and data integrity between host systems. It manages the segmentation of data, error correction, and flow control. Well-known protocols in this layer include TCP (Transmission Control Protocol) and UDP (User Datagram Protocol), each with its specific use case for data transmission.

Layer 5: Session Layer

The Session Layer is all about managing and controlling computer connections. It establishes, maintains, and terminates sessions. This layer is responsible for synchronization tasks and ensures that data is properly organized and sent in the right order.

Layer 6: Presentation Layer

The Presentation Layer acts as a translator. It formats or translates data from the application layer into a format suitable for transmission and does the reverse on the receiving end. It's also involved in data compression and encryption, making it a critical component for secure data transmission.

Layer 7: Application Layer

Finally, the Application Layer interfaces directly with end-user applications. It provides various networking services directly to applications and enables them to access the network. Common protocols at this layer include HTTP (Hypertext Transfer Protocol) for web browsing and FTP (File Transfer Protocol) for file transfers.

The OSI Model in Action: Sending an Email

To illustrate how the OSI Model works in practice, let's consider the simple action of sending an email. This everyday task involves data traversing through all seven layers of the OSI Model.

Step 1: Application Layer

You compose an email in your email client (like Outlook or Gmail). The application layer takes your message and prepares it for transmission using a protocol like SMTP (Simple Mail Transfer Protocol).

Step 2: Presentation Layer

Your email is then formatted for transmission. The presentation layer may encrypt your email for security and convert it into a format suitable for the network.

Step 3: Session Layer

A session between your computer and the email server is established. The session layer manages this session, ensuring that the connection remains open until your email is fully sent.

Step 4: Transport Layer

The email is broken into smaller segments for transmission. Using a protocol like TCP, the transport layer ensures these segments are sent reliably and in the correct order.

Step 5: Network Layer

The segments are further packaged into packets, and the network layer determines the best route for them to reach the email server, typically using IP addresses.

Step 6: Data Link Layer

The packets are then framed with the necessary headers and trailers for the network. The data link layer ensures these frames are sent correctly over the physical network.

Step 7: Physical Layer

Finally, the frames are converted into electrical, optical, or radio signals and transmitted across the physical network – be it through Ethernet cables, Wi-Fi, or other mediums.

Receiving End

Once the email reaches the server, it traverses back up the layers. The physical, data link, network, transport, session, presentation, and application layers on the server and recipient’s side work in reverse to deliver and display the email.

The Importance of the OSI Model in Cloud Computing

In cloud computing, the OSI Model serves as a crucial framework for understanding and managing complex network architectures.

Application to Cloud Services and AWS

Cloud services, including AWS, rely heavily on network communication protocols structured according to the OSI Model. For instance, when deploying an application on AWS, understanding how data traverses these layers helps in configuring services like Amazon EC2 or Amazon RDS effectively.

Each layer of the OSI Model corresponds to various AWS services and functionalities. For example, the physical and data link layers relate to the underlying AWS infrastructure, while the application layer connects with services like Amazon S3 or AWS Lambda.

Relevance in Designing Cloud Architectures

Designing cloud architectures requires a thorough understanding of network communication. The OSI Model provides a layered approach, allowing architects to systematically address each aspect of the network, from physical infrastructure to application protocols.

This layered approach simplifies troubleshooting. By isolating issues within specific layers of the OSI Model, cloud engineers can quickly identify and resolve network-related problems, ensuring the smooth operation of cloud-based applications.

Wrapping Up: The OSI Model's Role in Modern Networking

As we've seen, the OSI Model is more than a theoretical framework. It's a fundamental aspect of modern networking. Its layered approach simplifies the complexities of network communication, aids in understanding how different network components interact, and is pivotal in troubleshooting and designing robust network systems.
